Product Overview

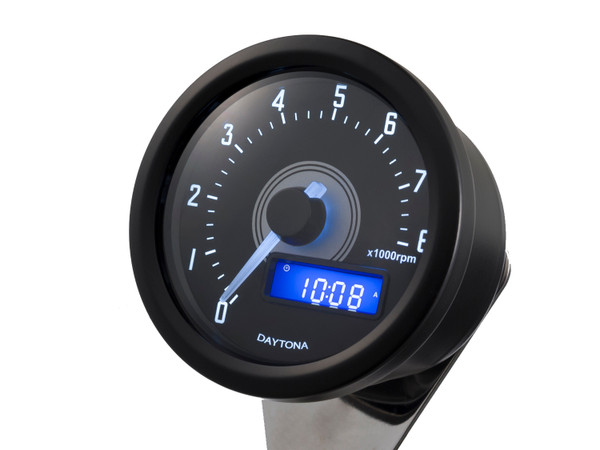

DAYTONA VELONA60, BLACK - Tachometer, 8000rpm, white LED lit, w/bracket, (C.E.).
The VELONA60 8000rpm tachometer is ideal as a replacement meter or for custom builds requiring a minimal sized gauge that has a low body height. Lens of the dial is a spherical shape; body is stainless steel (black). The tachometer can be mounted with the supplied bracket, or on one of the separately sold anti vibe mounts or dual fitting stays. Match with one of the speedometers from the range to have a set.
This is a widely used tachometer as the pulse signal can be picked up from the ignition coil, HT lead (TCI and CDI-ignited) and the pulse can be picked up from the ECU where applicable and compatible. Generally, the tachometer can be mounted regardless of the engine type or displacement as long as it is within the PPR range allowable (PPR = Pulse Per Revolutions).
Information:
• Stepping motor-driven tachometer
• 60mm stainless body
• BLACK rim / BLACK body
• White LED back lighting
• Installation bolt width 45mm
• Stay included, chromed type
Features:
• Digital clock with 12H display
• RPM – unit 1000rpm
• Maximum RPM memory and recall
• Maximum Temp memory and recall
• Digital Temperature gauge, -20 C ~+180 C (+4 F ~+356 F)
• Running time display -0-9,999 hours, 59 minutes
On certain models (older models) the aid of a pulse rectifier may be required when a pulse signal cannot be easily obtained. On models with high electrical noise, the use of the tachometer register harness may help stabilize the needle (only required on models with poor signals).
Available repair parts and separately sold (optional) items:
- #98641 - TACHOMETER REGISTER HARNESS - Noise is reduced when connecting to the pulse line - (1 MΩ)
- #92333 - RPM PULSE RECTIFIER - For cases that RPM pulse cannot be detected well, or RPM signal is unstable.
- #84851 - TEMPERATURE SENSOR 1/8" WITH EXTERNAL CABLE
- #80228 - TEMPERATURE SENSOR, FOR(VELONA), 1/8" THREAD, EXT-WIRE (BULLET TERMINAL TYPE)
- #85020 & 85018 - ARE OIL TEMP SENSOR FITTINGS (SUMP DRAIN) - M12 & M14 (mm).
We also have a range of anti-vibration type stays, & combinations stays that are anti vibe and combine the ALPHA or BETA instrument lights together. Also available are two types of dual fittings stays for the SR400/500 and XS650 models to combine the speedo and Tacho together (found within the SR400 parts page). Although they are for the SR, they are often adapted to another model where suitable to do so. To scroll the LCD screen, see the CNC machined toggle switches or use the rear set and mode buttons on the gauge housing.
Compatibility model list that Tacho has been tried with (may fit many more bikes)
We cannot respond to the suitability of each and every model for universal products. Please see the above specs and details. However, known models this gauge has been fitted to successfully are below, some may require special wiring or add-ons to function etc.
W650 (all)
REBEL250 ('17~'20) & Rebel 500
FTR223 ('00)
Honda Cross Cub 110 ('13~'18)
MONKEY (~'09)
SR500 ('78~'99)
SR400 (78 ~'18)
TW225 (ALL) - but requires certain wiring.
Drag Star DSC400 ('01), 650 & 1100 (V Star)
Suzuki Grass Tracker ('12)
Kawasaki 250TR ('02)
HD XL1200X ('10), FXDL ('08), FLST ('03), XL1200S (~'97)
Triumph Bonneville
Various older CB models (CB750 / 1100, 500 etc.)
SRX600
XT600
XJR1300 2007
Attention: There are circumstances where the tachometer cannot be fitted. Depending on the specification of the bike the Tacho may be incompatible. As an example, models with excessive (electrical) noise in the ignition signal or those with high output coils etc.
