Product Overview
DAYTONA SR400/500 "& XS650", DUAL GAUGE MOUNTING BRACKET, POLISHED "STAINLESS", 45145
Purpose-designed for the SR400/500, this quality dual gauge mounting bracket from Daytona Japan positions the speedometer and tachometer with balanced spacing to achieve the ideal custom styling. Unlike other options on the market that space gauges too close together, the positioning and spacing when using the Daytona bracket ensure the styling you want. While the centre section is not pre-drilled, it can still accommodate the Gamma LED instrument warning lights, micro indicator Alpha or Beta indicator warning lights for an integrated finish by simply adding two small 4mm holes.
The polished bracket can be paired with gauges featuring built-in warning lights or use it with our dedicated LED warning lights, allowing you to create a clean, un-clutted cockpit tailored to your build.
The anti-vibration rubbers in the original factory top bridge (gauge mount area) help stabilise the instruments while protecting them from vibration. When paired with our Daytona polished alloy top bridge for a clip-on conversion, (or OEM top bridge) the bracket retains the use of the mounting rubbers and remains fully compatible with the offset ignition-switch arrangement incorporated into the polished top bridge.
If installing a dual gauge set up, this polished gauge bracket or the Daytona black dual gauge bracket are the best options to use. Made in Japan!
FEATURES:
-> Dedicated SR400/500 gauge stay.
-> Flat mounting position.
-> Fits with 60mm mechanical gauges & also the VELONA60 range of electrical gauges.
-> Can be adapted to neatly fit ALPHA or BETA LED instrument lights in combination with gauge. Or use with our range of dash lights how you like.
-> Material: Polished stainless.

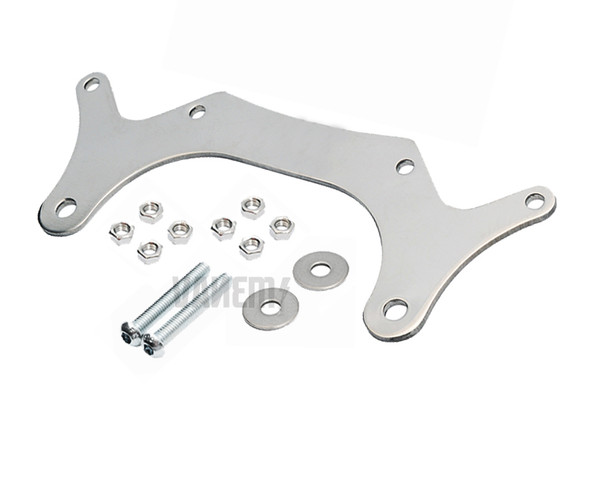

-> Supplied with bolts and nuts as shown.
COMPATIBLE MODELS:
+ SR400/SR500 (78-08)
+ SR400FI (2010 ~)
XS650 USE:
This stay can also be used on XS650 models using the same front end as the SR400/500.
UNIVERSAL USE:
This stay can be used for dual gauge mounting on a range of models. We often have W650 and Triumph owners adapt this bracket. However, you will need to adapt the bracket to your bike and that may require fabrication of additional parts / brackets to make this part work on other models. We support use on the SR model, so can't answer questions about every model available. But it is very adaptable!
NOTE:
1. This gauge stay is for mechanical 60mm gauge & VELONA 60mm gauges only.
2. Φ85mm / φ80mm / φ48mm meters cannot be used. (For φ60 meter only).
3. See our separate listings for the 60mm gauges.
4. *Always use thread locker on nuts (such as Loctite blue) to ensure fittings stay securely in place. *When using with mechanical gauges, use with genuine speedo/tacho cables.
5. Mechanical meters can only be installed on the upper side of the top bridge. If installed on the lower side of the Top Bridge the Tachometer & Speedometer cables contacts the genuine headlight, so in standard OEM) trim it cannot be installed. However, depending on the headlight used and light stays (such as separate aftermarket light stays, installation is possible in most cases on high or low side.). Electrical gauges can be installed either on the high or low side of the T/B.
