Product Overview

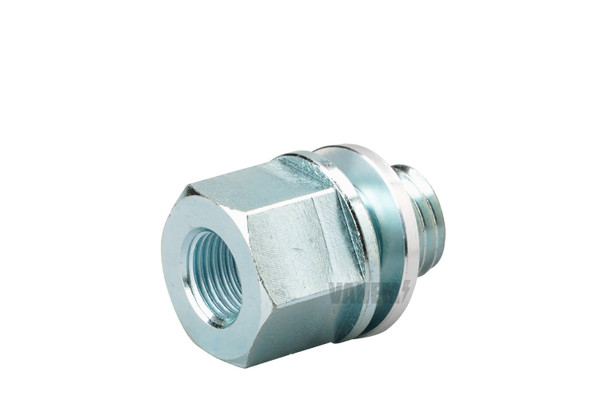

DAYTONA OIL TEMP SENSOR "SUMP BOLT" FITTING FOR 1/8” SENSOR, M12 X P1.5, 85018
The 85018 (M12mm x 1.5P) temp sensor "threaded sump plug bolt" is for use with the VELONA temp sensors that have a 1/8" centre thread. Or you can use with other suitable temp sensors requiring a 1/8" thread (& M12 x 1.5).
Details:
- Replaces the original oil pan drain bolt. Or use in an oil tank with M12 x 1.5 thread.
- The temp sensor mounting thread = R1/8 (1/8”).
- Includes copper washer gasket thickness: 0.08 inches (2 mm).
- Size: M12 x 1.5
- Material: Galvanised steel
- Use with optional temp sensor for Daytona VELONA & DEVA-01 meters.
Set includes:
- 1 x Oil temp sensor sump plug bolt.
- 1 x Copper washer - (*Image above shows the alloy washer).
Attention:
Do not over tighten the sump bolt. Only fit to require sump plug bolt torque.
Compatible models: (M12 X 1.5mm).
- HONDA: CBR1000RR (04) VTR1000F (97-98) CBR900RR / 929RR (92-01) CBR750 (87-88) RVF750 (94-96) VFR750 (86-89) Magna 750 (9) VF75 0F (82-83) CBR600RR (03-06) CBR600F (92-01) Hornet 600(98-) Rev 500(17-20) CB-1(89-91) CBX400F (81-84) RVF400(94-01) VFR. 400R (86-87) VFR400R Pro Arm (87-88) VFR400R (89-93) REVEL 250 (17-20) VTR250 (98-07) ZELBIS (91-97) V Twin Magna 250 (94-98) XR250/BAJA XLR250 R/BAJA (89-94) XL Degree (91-94) FORZA (04-07) [MF08] PCX/150(10-12) Monkey/Gorilla (92-07) DAX50(95-97) Dream 50(97-99) APE100 (01-0). 8) XR100/50(05-08) APE50(01-07), YAMAHA: MT-25(20) Grand Majesty 250(04) Majesty (00-06) Cygnus X125(03-20), KAWASAKI: ZX-12R ZX-9R (94-00) ZXR750(89-89 5) FX40 0R (85-90) GPZ400R (85-89) GPX400R (87) Ninja250 (12) ZZ-R250 (90-03) ZXR250 (89-99) Vario (91-07) Estreya (92-07) GPX250(87-88).
Note: This is an example list of the compatible models only. Please make sure you check your bikes details and required bolt size before placing your order.
