"DEVA01" MULTI FUNCTION COMPUTER FLAT BLACK, 89363

DAYTONA "DEVA01" MULTI FUNCTION COMPUTER, FLAT BLACK, 89363

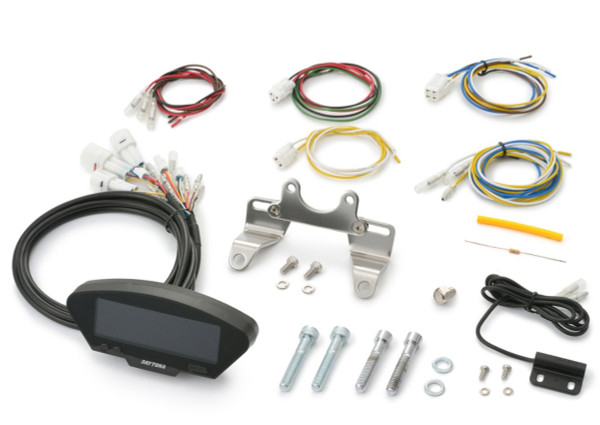

The DAYTONA "DEVA01" Multifunction Cockpit is a versatile and compact all in one dash unit designed to enhance the functionality of motorcycles and ATVs. It integrates all necessary functions into one unit, making it an efficient solution for riders who value both performance and convenience. The DEVA 01’s design accommodates various mounting options, courtesy of the M5 screw holes on the rear, and the stainless-steel bracket provided caters to handle posts with a pitch range of 63mm to 112mm spacing. You can also fit to your own one-off bracket to suit your customisation.

The inclusion of a reed type speed sensor ensures compatibility with bikes that do not generate an electrical speed signal, broadening its applications. However, as an option we also offer many bikes specific pulse sensors and the universal proximity sensor that doesn’t require use of a magnet.

In summary, the Daytona DEVA01 is a versatile gauge that complements just about any bike build style where a dash type unit is desired and clear and precise functions take priority. Suitable for use on custom builds, café-racers and even vintage/classic bikes if used correctly, and of course it can be used as an OEM replacement when needed. Its all-in-one design and low body height offers a sleek stealth look while providing essential information for the rider.

A comprehensive set of instructions is included (in English) and also above within the main images. We carry all of the complementing optional parts if ever needed such as oil, water and air temp sensors. And of course, we are here to help with your purchase and install questions if needed! In short, this multifunction cockpit is suitable for both modern and classic bikes, offering a seamless blend of technology and style for any adventure build or street bike.

Checkout the product preview video tab below for an overview of this great product.
*Keep in mind these videos are just for an example of the install only. You can integrate the dash units’ position into your fabrication during your bike build or restoration, fit within cowls, mount on various brackets and so on.

CERTIFICATION:
The DEVA 01 is ECE approved (ECE-R10), TUV, ABE & (C.E.) certified to meet strict Euro requirements for road use.

SPECS:
-> Dimensions: 132 x 58 x 25 mm (W x L x D)
-> Waterproof (IP67)
-> Black ABS housing
-> Stainless-steel bracket included.
-> Speedometer, MPH (0-250 MPH) & KM/H (0-399KM/H) selectable
-> E-marked (EU Approval CE, ECE 10R06)

FEATURES:
- Odometer (0- 99.999 km/mile)
- Dual trip odometer (0 - 99.999 km/mile)
- Engine speed display 0-10,000 or 20,000 rpm
- Clock (12h / 24h selectable)
- Gear (N, 1, 2, 3, 4, 5, 6 / Top 4-6 selectable)
- Low Battery Warning
- Volt (8.0 - 18.0 Volt)
- LED indicators (Turn signal left + right, Hi/Lo, Neutral, Oil pressure, Water temperature, Warning)
- Fuel gauge (works with > 100/250/510 Ohm sensors)
- Oil temperature (0°C - 150°C / 32°F - 356°F)
- Water temperature (0°C - 150°C / 32°F - 356°F)
- Air temperature (-10°C - 60°C / 14°F - 140°F) - *Air temp sensor not included see #89847 separately.

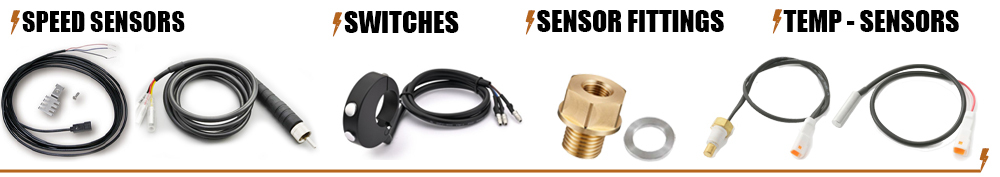

OPTIONAL PARTS:
- Air temp sensor - #89847
- Oil temp sensor -#89846
- Water temp sensor -#89846
- Handlebar bracket (mount) - #89845 (special order only)

EXTRA INFO:
-> Speed sensors:The DEVA 01 kit "includes" a magnetic reed type speed sensor, however if you prefer you can buy one of the direct fitting (model specific) type pulse sensor separately. The speed sensor options are available in our instrument and gauges section under (Speedo accessories). See > #87755, 87143, 87041, 87429,88457, 87430 & 87038. Or see link directly below in .2 of notes and cautions.
-> RPM pick up: Wiring is included, however, for models that cannot easily pick up a tachometer signal, or those with a poor (dirty) signal, the use of the RPM pulse rectifier is possible, see #92333 (found in the tachometer accessories section).

NOTES & CAUTIONS:
1. -> *If the bike has a standard electronic signal for speed, this speedometer can be connected to this original electronic signal in most cases (but not all). eg: W650, & many Harley models can be directly wired in etc. etc.

2. -> *If the bike is not equipped with a standard electronic signal for speed, you can use the supplied reed type sensor *or opt to purchase and use the active Daytona sensor (#87038) or one of the model specific DAYTONA pulse sensors bought separately. We stock sensors for popular models such as the SR400/500, Modern Triumphs, Classic BMW's and more! See notes above regarding speed sensors - (find sensor within the gauge accessories page here).

3. -> *Keep in mind this gauge is not suitable for 6-volt use (& many 6volt to 12v conversions). It is also *NOT suitable for use with battery lessers or bikes with highly stripped back modified race type ignition systems.

4. -> *If your particular bike suffers from "excessive" electrical noise in the system, and your gauge has an unstable needle (or is an older model), the Tacho resistor included in the kit can be used to stabilise the tachometer. For the Speedo side in teh rae case of an unstable needle, the use of the DAYTONA Speedometer "Optional Harness" 98642 can in certain circumstances also aid in stabilisation of the dial and function. The optional add on parts are generally not required, but some bikes with certain race or non standard ignitions systems may require them (typically older bikes such as CB750 / CX500 etc.).

Produced by DAYTONA Japan, imported, sold and distributed by VANEM within Aust.!

Daytona Japan (Daytona Corporation) has been a leader in motorcycle parts industry since 1972. Daytona provides original and customized motorcycle parts and accessories throughout Japan and to the international marketplace. Daytona’s specialty is R&D to develop original motorcycle parts and accessories which meet the demand in the highly competitive Japanese motorcycle industry and abroad.
