Product Overview
DAYTONA VELONA80-W, SPEEDOMETER, 200 (KM/H-MPH), W / 9000RPM TACHOMETER, 89364
The VELONA80-W is an all-in-one (80mm Dia.) gauge with a stainless housing and spherical lens. The analogue style dial for both the Speedo and Tachometer compliments modern and classic bike builds. The all-in-one unit also has neatly placed inbuilt dash lights and functions information LCD screen which further adds to the clean and minimal layout. To finish off, you get modern LED back lighting. Combine all of these features and this gauge ticks all the right boxes for garage builders and professional custom bike builders alike.
Compared to your old dull OEM bulb lit gauges, with the VELONA 80 W, night rides will be instantly transformed. And just to ensure owners in all regions can use this gauge safely, the speed setting is selectable between Km/h and Mph.
In summary, the 80mm VELONA-80-W is a versatile gauge that complements just about any bike build style, including vintage, custom, and café-style motorcycles and of course it can be used as an OEM replacement when needed. Its all-in-one design and low body height offers a sleek stealth look while providing essential information for the rider.
A comprehensive set of instructions is included (in english) and also above within the main images. We carry all of the complementing optional parts if ever needed. And of course, we are here to help with your purchase and install if needed!
Checkout the product preview video tab below for an overview of this great product. (Remember to change YouTube settings to 1080p HD to see the fine details!)
CERTIFICATION:
The VELONA 80 W is ECE approved (ECE-R10), TUV, ABE & (C.E.) certified to meet strict Euro requirements for road use.

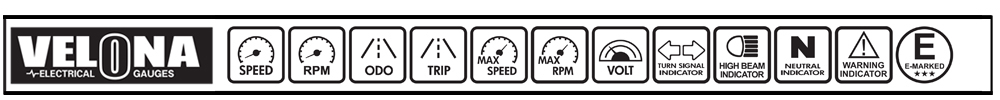

FEATURES:
+ Black body and face with white letters and white LED back light
+ Stainless steel housing (dia. 80mm, max height 51mm)
+ Speed unit selectable from km/h (0-200) or MPH (0-200)
+ Odometer range: 0-99,999 km(mile) - (Not re-settable)
+ Dual trip odometer range 1& 2: > 0-9,999.9 km(mile)
+ RPM meter range: 0-9,000 RPM
+ Instrument lights for: turn signal left and right, high beam, neutral and warning (oil / Eng)
+ V-shaped bracket included.
+ Low body height enables fitment in tight dash area's.
+ Stepping motor drive - moves pointer quickly to indicate actual rpm.
+ Ability to connect to OEM speed sensor, (*if the vehicle is equipped with an electrical speed sensor that is of the correct type.)
+ PPR setting can be set from 1P-1r/1P-2r/2P-1r/30P-1r (pulse per revolution setting)
+ Voltmeter: 0.0-18.0 V
+ Max. speed memory and recall
+ Max. rpm memory and recall
+ E-marked (ECE-R10), TUV, ABE & (C.E.) certified to meet strict Euro requirements for road use.
+ Power operational range - DC 9-16 (regular 12V) - NOT suitable for 6v bikes.
+ Great price point for a quality gauge compared to other offerings.
+ Tried and tested over many years first hand, & by owners and custom bike builders.
+ The reliability that you want, (unlike cheap no-name gauges sold elsewhere).
+ Trusted by our direct customers, custom bike builders & the various dealers that we supply!
OPTIONAL PARTS:
To compliment the great VELONA gauge range, VANEM stocks many optional add on products to help you get the job done. From the many variations of dash light units (dash lights not required with this gauge as they are inbuilt), anti-vibration stays with different offsets and angles & essentials like speed sensors, wiring and switches, VANEM has you covered with all of your needs to get the job done like a pro!
NOTES & CAUTIONS:
1. -> *If the bike has a standard electronic signal for speed, this speedometer can be connected to this original electronic signal in most cases (but not all). eg: W650, & many Harley models can be directly wired in etc. etc.
2. -> *If the bike is not equipped with a standard electronic signal for speed, please purchase and use the active Daytona sensor (#87038) or one of the model specific DAYTONA pulse sensors. We stock sensors for popular models such as the SR400/500, Modern Triumphs, Classic BMW's and more! (find sensor within the gauge accessories page here).
3. -> *Keep in mind this gauge is not suitable for 6-volt use (& many 6volt to 12v conversions). It is also *NOT suitable for use with battery lessers or bikes with highly stripped back modified race type ignition systems.
4. -> *If your particular bike suffers from excessive electrical noise in the system, and your gauge has an unstable needle (or is an older model), Tacho resistor provided can be used as mentioned above, however for the speedo side the use of the DAYTONA Speedometer "Optional Harness" 98642 can in certain circumstances also aid in stabilisation of the dial and function.
Produced by DAYTONA Japan, imported, sold and distributed by VANEM within Aust.!
Daytona Japan (Daytona Corporation) has been a leader in motorcycle parts industry since 1972. Daytona provides original and customized motorcycle parts and accessories throughout Japan and to the international marketplace. Daytona’s specialty is R&D to develop original motorcycle parts and accessories which meet the demand in the highly competitive Japanese motorcycle industry and abroad.
